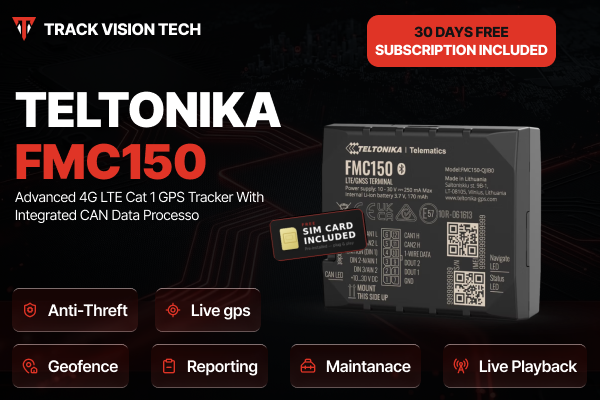

Teltonika FMC150 – Advanced 4G GPS Tracker with Built-in CAN Data Reader
Advanced 4G GPS tracker with integrated CAN data processor.
- 2-in-1 device – GPS tracker and CAN bus adapter in a single compact unit
- Reads real vehicle data – fuel level, fuel consumption, odometer, RPM, pedal position straight from the ECU
- Works with EVs – supports 100+ electric vehicle models for battery state of charge and charging status
- Future-proof network – 4G LTE Cat 1 with 2G fallback for global, long-term coverage
- High-precision tracking – GPS, GLONASS, GALILEO, BEIDOU, SBAS and QZSS support
- Smart driving scenarios – Green Driving, overspeeding, crash detection, jamming detection, towing, immobilizer
- Bluetooth LE – connects to external sensors (temperature, humidity, beacons, OBD dongle, iButton)
- Backup battery – 170 mAh internal battery keeps tracking even if power is cut
- Remote firmware updates – FOTA WEB lets you update devices over the air without touching them
-
- Cellular4G LTE Cat 1, GSM/GPRS fallback
- GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS, SBAS
- Position accuracy< 2.5 m
- CEPHot start< 1 sec
- Power input10 – 30 V DC (overvoltage & reverse polarity protection)
- Backup battery170 mAh Li-Ion (3.7 V)
- Interfaces3 Digital Inputs, 2 Digital Outputs, 2 Analog Inputs, 2 CAN, 1-Wire,
- USB Bluetooth4.0 + LE
- Dimensions65 × 56.6 × 20.6 mm
- Weight 55 g
- Operating temperature–40 °C to +85 °C
- SIM Micro-SIM (included, preconfigured)
Product Description
The FMC150 device comes already with a SIM card and is fully preconfigured — just buy it, connect it to your vehicle following the manual included in the package, and you're tracking. This is our most powerful hardwired tracker, designed for businesses that need much more than just location: it reads data directly from your vehicle's CAN bus so you can see real fuel level, real odometer, engine RPM, accelerator pedal position and total fuel consumption — straight from the vehicle's own computer. It works with light vehicles, electric vehicles, trucks and buses. Once installed, all the data flows into the Track Vision app where you can monitor your fleet in real time, set geofences, get alerts for crashes, harsh driving and unplug attempts, view full trip history, and analyse driver behaviour to reduce fuel costs. Future-proof 4G LTE Cat 1 connectivity with 2G fallback keeps your fleet online for years to come.
